Tomos Pistons and Cylinders/ Parts  ( NEW A55 update at bottom of page)

TOMOS A35 Piston/ Cylinder/ Parts ( 4 bolt manifold )
Diagram reference # T1a
PART# DESCRIPTION PRICE
T1a-229-707a intake manifold  Current A35  Offset $21.95

T1a-229-707b(injector)		 intake mainfold- Curent A35 Offset ( injection version)
21.95
T1a-229-707c intake manifold  Early A35 straight $21.95

T1a-229-707d(injector)		 intake manifold  Early A35 straight( injection version)
21.95
TM-029 (223-748) Tomos A35 reed valve Gasket $3.95
TM-030 (222-238) Tomos A35 reed valve $39.95
PG-100 (044-511) Bosch W8AC plug $4.00
T1a-223-466N Cylinder Head A35 $59.95 new
T1a-223-466U Cylinder Head A35 $35.00 used
TM-042 (229-402) Cylinder piston complete- SEE BELOW $159.95
T1a-201-104 rubber insert for electrical wires $1.95
T1a-031-076 Cylinder stud nut $.95ea
T1a-044-154 Cylinder stud washer $.50ea
T1a-227-763 Crank Case w/engine cover A35
 $129.95
T1a-227-763(TC) Right transmission case cover only  (used)
 $50.00
TM-015 (205-386) Cylinder Stud - All Tomos $4.95
T1a-222-235N Side cover - Targa w/injector hole $49.95 new
T1a-222-235U Side cover - Targa w/injector hole $35.00 used
T1a-223-471 Side cover- Sprint no injector hole Sold out
T1a-026-573 6mX25 allen- sidecover- short $1.95 ea
T1a-200-294 kick start bushing
 $1.95
TM-016 (208-201) exhaust stud $2.95ea
TM-028 (223-796) A35 Cylinder Base Gasket $3.95
T1a-026-566 5mX20 allen- intake manifold $1.95ea
T1a-031-931 washer $.50
PR-022 (222-041) Standard A35 ring 38/FG/1.5 $7.95ea-- $15.90 set
PR-023 (227-758)  Oversize A35 ring 38.50/FG/1.5 NLA
T1a-227-501 wrist pin $8.95
PN-102 (223-747)   Tomos A35 (reed valve) piston kit
-std. 38.00 mm bore-includes piston,
rings,12mm pin, and clips ( sold as complete kit only )- factory Tomos piston kit
 $49.95



PN-103 (227-334) Tomos A35 (reed valve)piston kit
-1st OS 38.50 mm bore-includes piston,
rings,12mm pin, and clips		 $49.95


T1a-032-039 clip 12mm
 $1.95ea
T1a-026-582 6mX65- sidecover screw $3.95
T1a-026-311 oil fill bolt $1.95
T1a-044-582 Sealing washer $.95 ea
T1a-027-264 6mX1.00-10 $1.95
T1a-044-581 sealing washer A6 X12 $.95
TM-033A (222-087) A3/A35 sidecover gasket
pre Jan 2003
 $7.95

TM-033B(232-971)
 A35 / A55sidecover gasket post Jan 2003
$7.95
T1a-223-440 bushing 8X16 $3.95ea
TM-034 (222-098) A3/A35 centercase gasket $7.95
T1a-030-049 8m lock nut $1.95
T1a-031-933 washer $.95
T1a-026-041 8mX165- upper $3.95ea
T1a-026-043 8mX170- lower $3.95ea
 gasket kits- see bottom of page

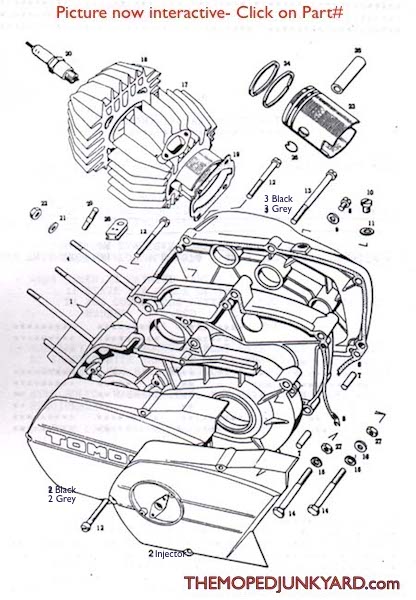

 TOMOS A3 Piston/ Cylinder/ Parts ( 2 bolt manifold )
Diagram reference # T1b
PART# DESCRIPTON PRICE
T1b-209-115 (1) crank case complete- USED- no side covers $100.00
T1b-209-026 (grey)(2)
left hand side cover grey
 $30ea- used only
T1b-222-332 (black)(2) left hand side cover black
 $30ea- used only
T1b-222-384 (blackw/injector hole)( 2) left hand side cover black w/ injector
 $30ea- used only
T1b-209-023 (grey)(3)
right hand side cover grey
 $35ea- used only
T1b-217-206 (black)(3) right hand side cover black
 $35ea- used only
TM-015 (4) cylinder stud $4.95ea
TM-034 (5) centercase gasket $7.95
TM-033A(6) side cover gasket . A35 substitute--Must use permatex to seal lower alignment pin hole $7.95
T1b-037-290 (7) pin 6 X 16 $3.95ea
T1b-027-226 (8) screw 6mX8 $1.95
T1b-044-581 (9) washer - seal A6X12 $1.95
T1b-027-239 (10) screw 8mX10 $1.95
T1b-044-582 (11) washer - seal A8X14 $1.95
T1b-027-082 (12) screw 6mX25 sidecover -short $1.95
T1b-027-041 (13) screw 6mX65 sidecover -long $3.95
T1b-026-041 (14) screw 8mX70 $3.95
T1b-031-989 (15) lock washer A8 $1.95
T1b-031-933 (16) washer 8 $.95
TM-041 (209-114) (17) cylinder used /piston new complete $139.95
T1b-217-123 (18) cylinder head $25 used
TM-027 (202.395) (19) base gasket A3 $3.95
PG-100 (20) Bosch Plug W8AC $4.00
T1b-044-154 (21) washer $.95
T1b-031-076 (22) Cylinder stud nut $.95
PN-100 (207-403) (23) Piston kit complete 38.00 bore $42.95-- SEE BELOW
PR-021 (044-754) (24) Piston ring 38/FG/2.0 $7.95ea- $15.90 set
T1b-201-627 (25) gudgeon pin( wrist pin) $8.95
T1b-032-038 (26) circlip 10mm
 $1.95ea
T1b-031-124 (27) 8m nut $.95
T1b-030-049 (27) 8m lock nut $1.95
T1b-201-104 (28) rubber insert for electrical wires $1.95
TM-016 (29) exhaust stud $2.95 ea




A55 Engine Parts
Part#
 Description
 Price
T1c-230-940
 (1) crank case complete kick
 $189.95
T1c-230-950
 (1) crank case complete pedal
 $189.95
T1c-222-098
 (2) Engine center  gasket
 $7.95
T1c-223-440
 (3) Centering Bushing 9.8 x 16
 $3.95
T1c-232-971
 (4) Crankcase cover gasket
 $7.95
T1c-027-264
 (5) Screw 6mmx 10mm
 $1.95
T1c-230-172
 (6) Seal Ring A6 x 12mm
 $1.95
T1c-026-311
 (7) Screw 8mm x 10mm
 $1.95
T1c-230-173
 (8) Seal ring A8 x 14mm
 $.95
T1c-233-718
 (9) Elastic pin 8 x 16
 $2.95
 temp out
T1c-230-966
 (10) Magneto cover - kick- alloy
 $69.95
T1c-236-999
 (10) Magneto cover - kick- resin
 $49.95
T1c-230-967
 (10) Magneto cover- pedal-alloy
 $69.95
T1c-200-294
 (11) rubber ring
 $1.95
T1c-026-593
 (12) Allen Screw 6mx 35mm
 $2.95
T1c-026-636
 (13) Allen Screw 6mx 40mm $2.95
T1c-026-041
 (14) Screw 8M x 165mm
 $3.95
T1c-026-043
 (15) Screw 8M x 175mm $3.95
T1c-031-933
 (16) washer 8mm
 $.95
T1c-030-049
 (17) nut 8mm  x 1 self locking
 $1.95
T1c-233-716
 (18) Cylinder stud bolt 7M/6M x 115
 $5.95
T1c-233-714
 (19) Cylinder base gasket
 $3.95
T1c-233-711
 (20) Cylinder w/ piston complete A55 See Below
 $189.95
T1c-208-201
 (21)  Stud bolt 6M x 24
 $1.95
T1c-233-702
 (22) Cylinder head A55
 $69.95
T1c-233-717
 (22x) Cylinder head gasket
 $5.95
T1c-044-617
 (23) Spark Plug  BR8ES
 $4.00
T1c-031-059
 (24) washer 6mm
 $.50
T1c-031-075
 (25) nut 6mm
 $.95
T1c-233-709/PN-105
 (26) Piston Complete  A55
 $69.95
T1c-233-707
 (27) Upper Piston Ring
 $10.95
T1c-233-708
 (27) Lower Piston Ring
 $10.95
T1c-233-762
 (28) Wrist Pin
 $8.95
T1c-233-763
 (29) Spring Clip 12mm
 $1.95 ea
T1c-026-573
 (31) Allen Screw 6M x 25
 $1.95
T1c-026-582
 (32) Allen Screw 6M x 65
 $3.95
T1c-233-713
 (33) Intake Manifold  A55
 $18.95
T1c-233-715
 (34) Intake Manifold gasket
 $2.95
T1c-026-686
 (35) Screw 5M x 20
 $1.95
T1c-031-931
 (36) Washer 5mm
 $.50
T1c-230-793
 (38) Crankcase bushing
 $14.95
T1c-230-794
 (39) Cover bushing
 $4.95
T1c-230-812
 (40) Upper Protector
 $4.95
T1c-230-968
 (41) Lower Protector
 $4.95
T1c-230-811
 (42) Rubber hose
 $2.95
T1c-230-792B
 (45) Oil pump cover (Black) fit A35& A55
 $18.95
T1c-230-792C (45) Oil pump cover ( Chrome) fit A35& A55 $18.95
T1c-027-271
 (46) Screw 5M x 30
 $2.95
T1c-236-459
 Gasket kit complete-  A55
 $24.95





A55 Cylinder Kit
Part#
 Description
 Price
T1c-233-711 Cylinder w/ piston complete A55-- 38mm bore
49cc Factory cylinder kit
 $189.95




  Tomos Pistons & Rings A3/A35
PART# DESCRIPTION PRICE
PN-102 (1) Tomos A35 (reed valve) piston kit
-std. 38.00 mm bore-includes piston,
rings,12mm pin, and clips		 $49.95

PN-103 (1) Tomos A35 (reed valve)piston kit
-1st OS 38.50 mm bore-includes piston,
rings,12mm pin, and clips		 $49.95 (special order)

PN-100
 (2) Tomos A3 piston kit
- std.38.00 mm bore-includes piston,
rings,10mm pin, and clips		 $42.95

PN-104
 (2) Tomos A3 w/A35 transmision piston kit (92/93 sprint only)-std. 38.00 mm bore-includes piston, rings,12mm pin, and clips $49.95


PR-022 (1a) Piston rings-A35
38.00/FG/1.5		 $7.95ea
PR-021 (2a) Piston rings-A3
38.00/FG/2.0		 $7.95ea
Tomos Piston Cylinder Kits- Standard Bore
PART# DESCRIPTION PRICE
TM-041 A3 Piston Cylinder Complete
used cylinder new piston
OEM kits are no longer avail		 $139.95


TM-042 A35 Piston Cylinder Complete
OEM new factory kit
 $159.95





Tomos Gaskets and Gasket Kits
Part# Decription Price
TM-027 Tomos A3 base gasket $3.95
TM-028 Tomos A35 base gasket $3.95
TM-029 Tomos A35 Reed valve Gasket $3.95
TM-031 Tomos A3/A35  Exhaust gasket $2.95
TM-032 ( not pictured)
 Tomos A3 intake gasket 6mm thick
 $6.95  NEW
TM-033A (222-087) Tomos A3/A35 Side cover gasket  Pre Jan 2003
for A3 Must use permatex to seal lower alignment pin hole		 $7.95


TM-033B (232-971) Tomos A35/A55 Side cover gasket  post Jan 2003
 $7.95
TM-034 Tomos A3/A35 Centercase gasket $7.95
TM-035 ( upper kit)
 Tomos gasket set complete A35-- aftermarket
 $19.95

TM-003A ( middle kit )
 Tomos A3 Gasket kit
 out of stock
ETA 6/15
T1c-236-459 ( lower kit)
 Tomos A55 Gaslet kit
 $24.95
